S05
S05 Premium 1-Bedroom Safari Lodge Tents – Stormproof Steel Frame for 3 Guests
🏆 Best-Selling Classic
• Proven design • Industry benchmark

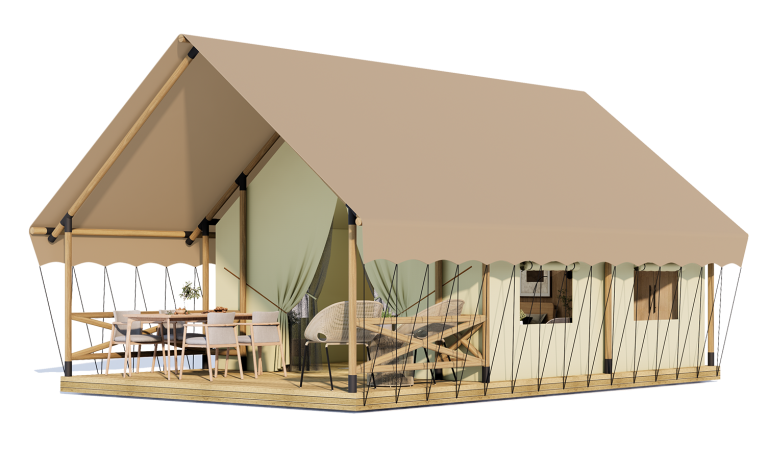

🌴 Spacious Veranda
• 13m² covered lounge area • Scenic relaxation
🛡️ Storm-Proof Performance
• 8000mm waterproof roof • Level 8 wind rating
🌲 Premium Timber Frame
• Ø90mm solid pinewood • Anti-rust connectors
🏠 Luxury Interior Space
• 25m² living area • 4.2m peak height
⏳ Decade Durability
• UV/mould resistant fabrics • 10-year guarantee
🚪 Grand Entrance
• 4.3m wide door • 4 ventilation windows
Size

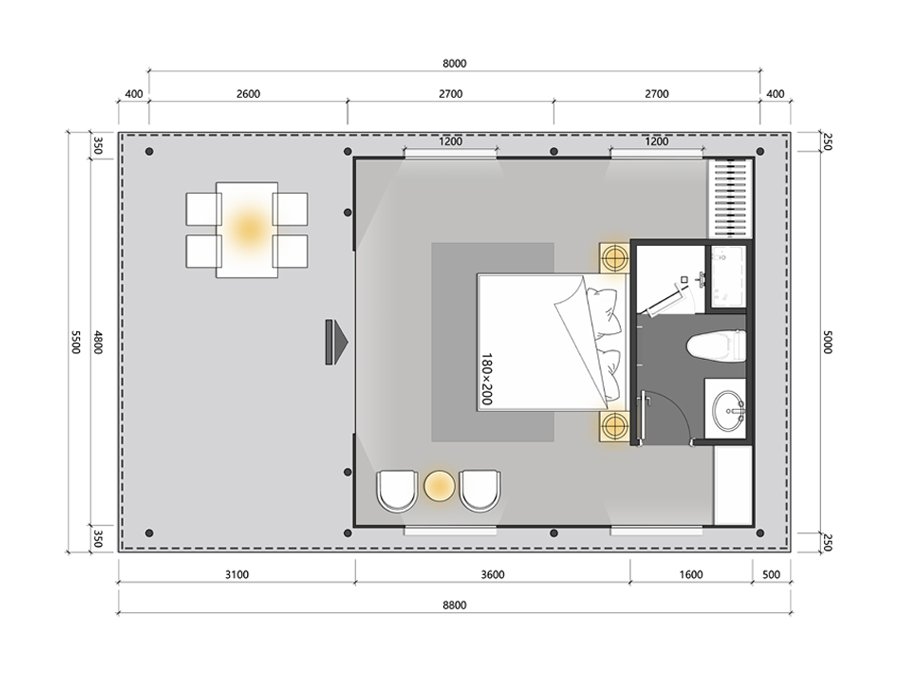

📐 Dimensions & Properties
| Specification | Measurement |
|---|---|
| Projected Area | 48.5m² (522 ft²) |
| External Size | 5m × 8m (40m² / 430 ft²) |
| Indoor Area | 4.8m × 5.2m (25m² / 269 ft²) |
| Veranda Area | 4.8m × 2.6m ≈ 13m² (140 ft²) |

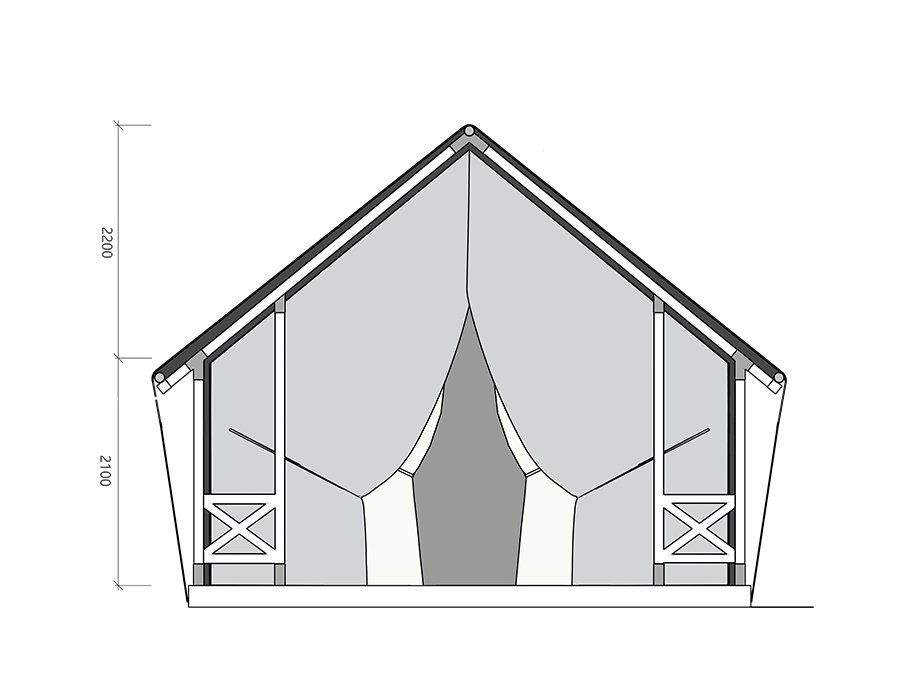

| External Height | 4.5m peak / 2.1m side (14.8’/6.9′) |
| Internal Height | 4.2m peak / 2m side (13.8’/6.6′) |
⚙️ Technical Performance
| Parameter | Specification |
|---|---|
| Wind Resistance | Beaufort Scale 8 (62-74 km/h) |
| Roof Load Capacity | 15 kg/m² (3.1 lb/ft²) |
| Operating Temp | -20°C to +50°C (-4°F to 122°F) |
| Design Lifespan | 10 Years |
🧵 Materials
| Component | Outer Roof | Inner Walls |
|---|---|---|
| Material | PVC-Coated Fabric (850g/m²) | Oxford Fabric (420g/m²) |
| Waterproof | 8000 mm Hydrostatic Head | 3000 mm Hydrostatic Head |
| Lightfastness | 7 (Blue Wool Scale) | 5 (Blue Wool Scale) |
| Features | Fire/Mould/UV/Tear Resistant | Fire/Mould/UV Resistant |
| Colors | Khaki + Custom | Beige + Custom |
🧵 Construction
| Structural System | |
|---|---|

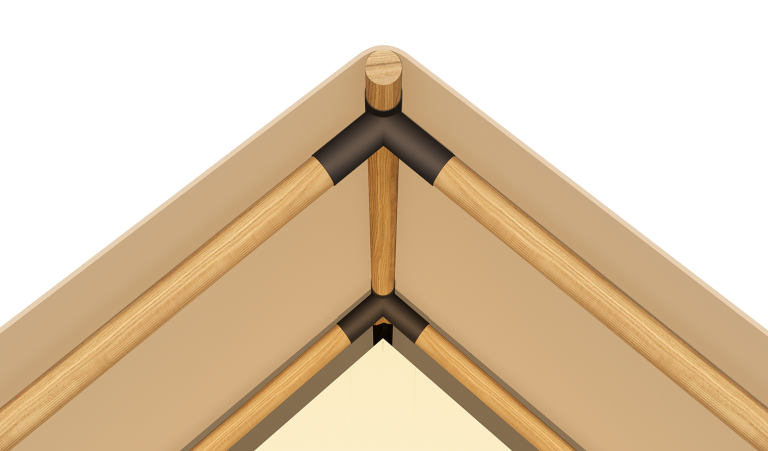

| Frame | Solid Pinewood (Ø90mm) |
| Connectors | Anti-Corrosion Steel |
| Assembly | Self-Tapping Screws |
| Platform | Galvanized Steel + Pinewood Deck |
🚪 Openings & Ventilation
| Details | |
|---|---|
| Doors | 1 × Grand Entrance (4.3m×2.5m/14.1’×8.2′) |
| Windows | 4 × Zipper (1.2m×0.8m/3.9’×2.6′) |
| Covers | Clear PVC outer + Oxford inner |
| Insect Screen | All openings |
🛋️ Luxury Amenities Package
| Bathroom | Furniture (4-Star Hotel) |
|---|---|
| • Sintered stone shower floor | • 180×200cm king bed |
| • Tempered glass partition | • 80×50×200cm wardrobe |
| • Full aluminum lining | • 140×70cm dining table + 4 chairs |
| • Toilet + sink + mirror | • Occasional chair + TV stand |
| Appliances | • 2 nightstands |
| • Wall-hung AC (2P) | |
| • Compact refrigerator |
